Titan Missile Underground Launch Complex Cutaway

Titan Missile Underground Launch Complex

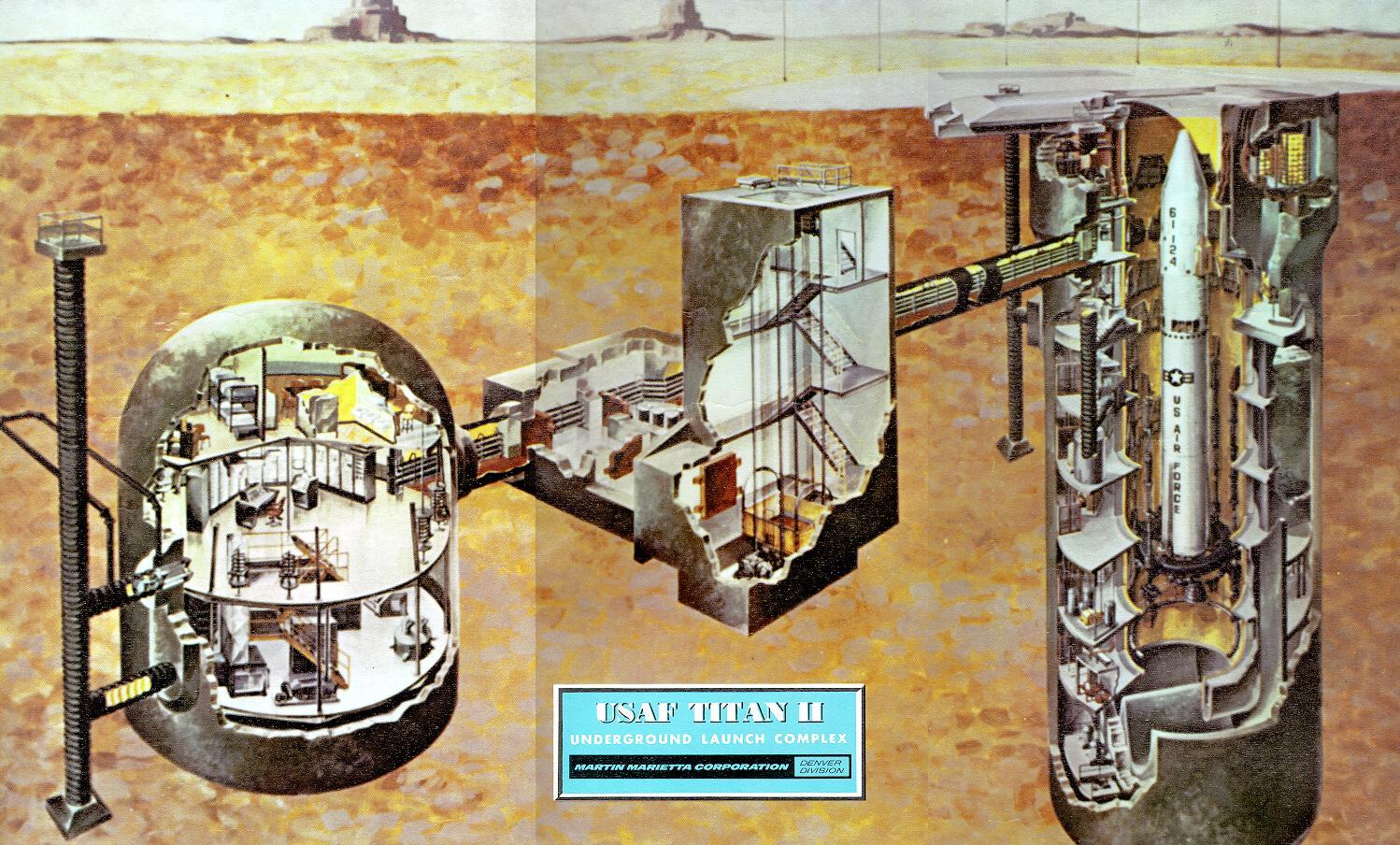

The Titan II Missile Underground Launch Complex (Large Image) is classic Cold War-era cutaway stuff.  At the Titan Missile Museum in Arizona, you can tour the entire facility.  As their brochure states:

The Titan II Intercontinental Ballistic Missile (ICBM) was the first liquid propellant missile that could be launched from underground. Equipped with a nine-megaton thermonuclear warhead, the Titan II was capable of reaching its target—more than half a world away—in less than thirty minutes. The preserved Titan II missile site, officially known as complex 571-7, was completed and turned over to the U.S. Air Force in 1963. Until 1987, when the last Titan II was deactivated, 54 Titan II
missile complexes across the United States stood “on alert” 24 hours a day, 7 days a week.

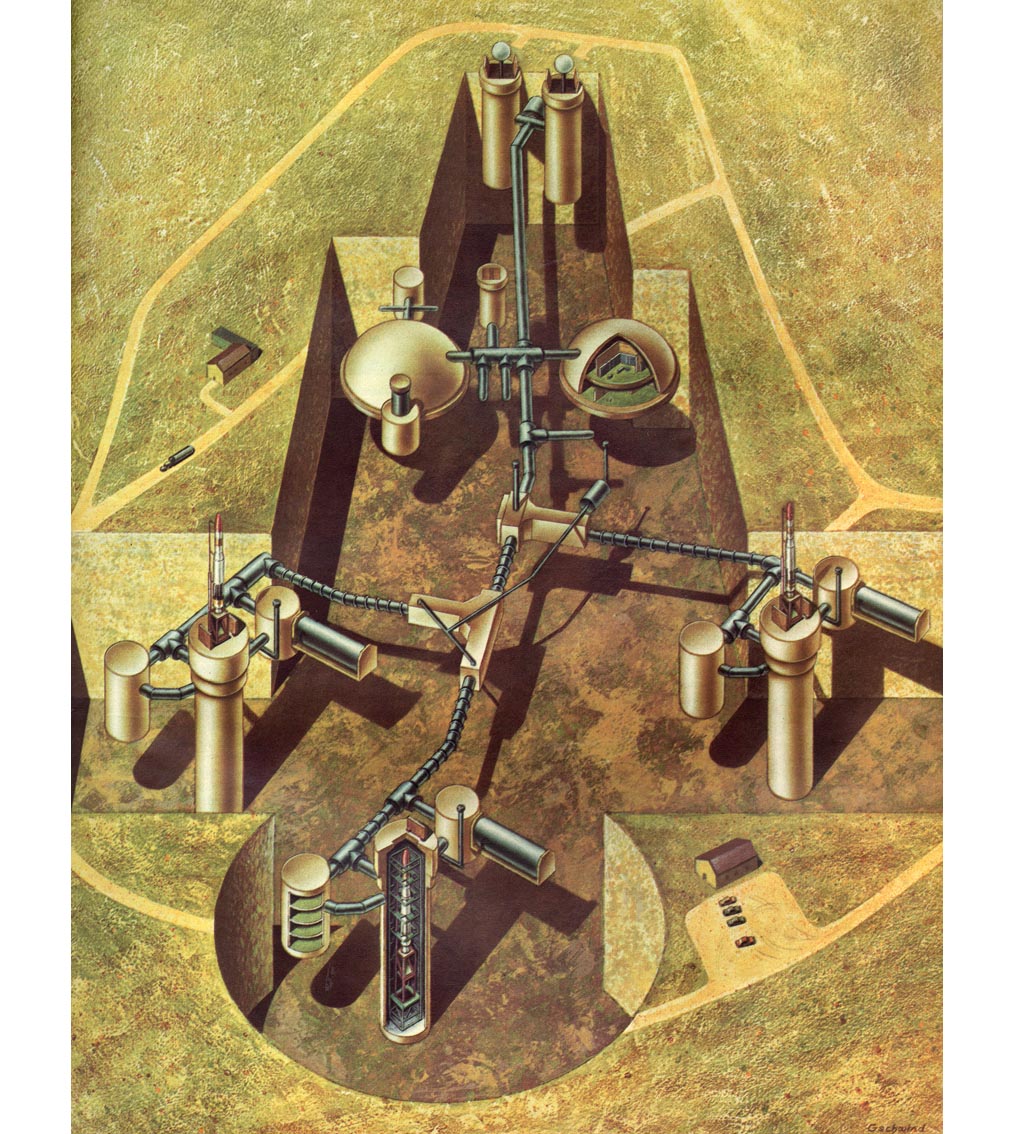

A cutaway from Fortune Magazine (1960) is a bit more artful and fanciful, and looks more like the cover of a sci-fi paperback than a true cutaway:
